WDC-4

Battery igniter for 1-4 outlets with integral battery holder: From 2 to 4 outlets for connection to spark plugs. Integrated waterproof switch. Threaded plastic ring fixing. High reliability thanks to a completely resin encapsulated system w...

产品类别：IGNITERS FOR HEATING MARKET
Power voltage：
Power frequency：
Absorbed supply：
Max Temperature：

产品介绍 Product introduction

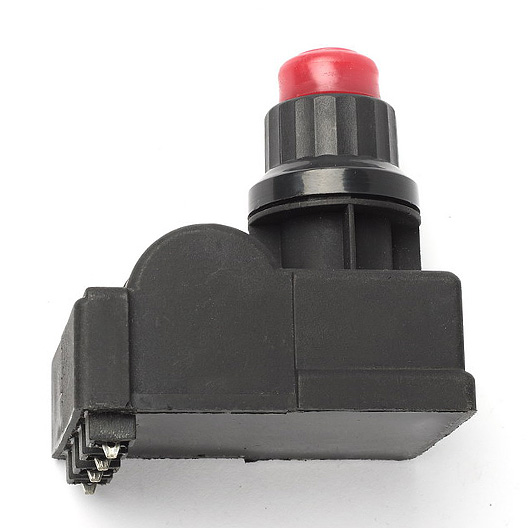

Battery igniter for 1-4 outlets with integral battery holder:

· From 2 to 4 outlets for connection to spark plugs.

·Integrated waterproof switch.

·Threaded plastic ring fixing.

·High reliability thanks to a completely resin encapsulated system which guarantees waterprofing and mechanical stress resistence.

·Customized frequency and spark energy.

WDC-2/4 SERIES

Model	WDC-2-1	WDC-2-2	WDC-4-3	WDC-4-4
Input Voltage	AAA(LR3) 1.5V Battery
Current Consumption	0.15 AMP or Less		0.18 AMP or Less
Igniter Voltage	12 KV or more
Spark Frequency	5 Hz or more
Spark Gap	3/16 in +/- 1/32
Ambient Temperature	-40oF to +160oF
Capability	For 1 Burner	For 2 Burner	For 3 Burner	For 4 Burner
